How Do I Create a Connection for iKit2000?

To create a connection for the iKit2000 Development Board in Windows 95/98 Dial-Up Networking, do the following:

Double-click My Computer.

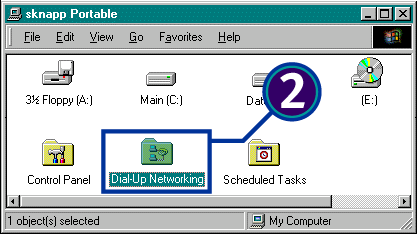

Double-click Dial-up Networking.

If Dial-Up Networking is not present, it must be installed.

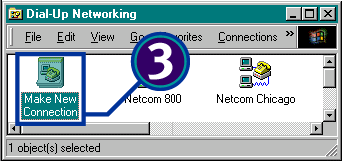

Double-click Make New Connection.

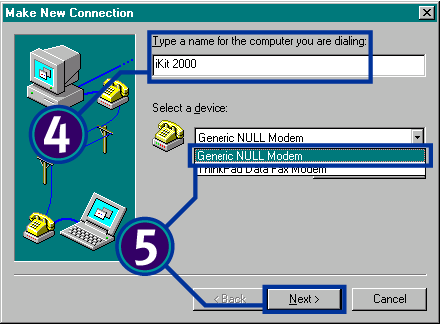

Under Type a name for the computer you are dialing, enter iKit2000.

From the Select a device drop-down, choose Generic NULL Modem. Click Next.

If Generic NULL Modem is not available on the list, it must be installed.

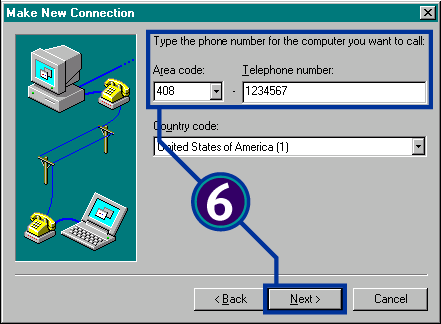

Under Type the phone number for the computer you want to call, enter an arbitrary Area code and Telephone number. Click Next.

Even though the number is not actually used (any number will suffice), a phone number is required in these fields.

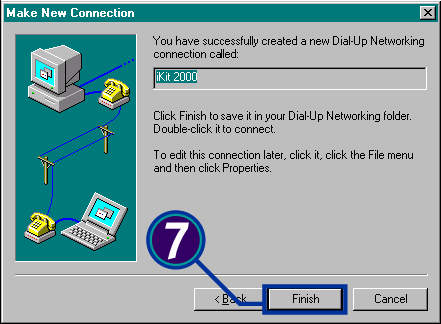

Click Finish. The iKit2000 connection will appear in the Dial-Up Networking window.
